GCY198

This is a side-pressure sliding window, which can also function as a side-pressure sliding door. It offers the same excellent air tightness and water tightness as a casement window, while retaining the advantages of a sliding window – large opening area and zero space occupation. Through thoughtful design, it also delivers outstanding wind load resistance. It is a high-quality aluminum door and window that combines the comprehensive performance of casement windows, sliding windows, energy-saving windows, anti-theft windows, insect-proof windows, and soundproof windows. It is suitable for all conceivable scenarios, including hotels, villas, apartments, and commercial spaces, and offers irreplaceable five-aspect performance (air tightness, water tightness, wind load resistance, thermal insulation, and sound insulation), particularly in coastal regions.

Key Features:

1. Easy operation – The hardware adopts an integrated lateral compression structure, making operation simple and smooth.

2. Energy-saving window – When closed, the sash is pressed laterally against the frame, with sealing strips forming a compression-type seal, resulting in superior air tightness and water tightness.

3. Soundproof window – The compression seal combined with insulating glass units significantly reduces outdoor noise, and thermal insulation performance is better than that of ordinary sliding windows.

4. Wind load resistance – The side-pressure structure ensures a firmer engagement between sash and frame; the main load-bearing sections have a wall thickness of 1.8–2.0mm, providing exceptional resistance to wind pressure.

5. Anti-theft window – Locking points are firmly engaged when closed, enhancing burglary resistance.

6. Efficient drainage – A concealed drainage system prevents rainwater backflow and ensures smooth water discharge.

7. Easy cleaning – The track is built into the frame, preventing dust accumulation and making cleaning effortless.

8. Premium hardware – Equipped with Liangmudao system hardware, featuring a dual-track 8-wheel design. This not only increases the load-bearing capacity of the bottom rollers on the sash, but also minimizes the lower track cavity space for the sliding sash. It improves the stability and smoothness of sliding during operation. In addition, the unique dual anti-sway wheel design effectively prevents shaking during use, further enhancing the user experience and ensuring comprehensive product performance.

9. Stop-at-any-position – The hardware system features a 180-degree handle for opening and closing, allowing the sliding sash to stop at any position. Users can adjust the opening degree at any time according to their needs, accommodating different ventilation and daylighting requirements.

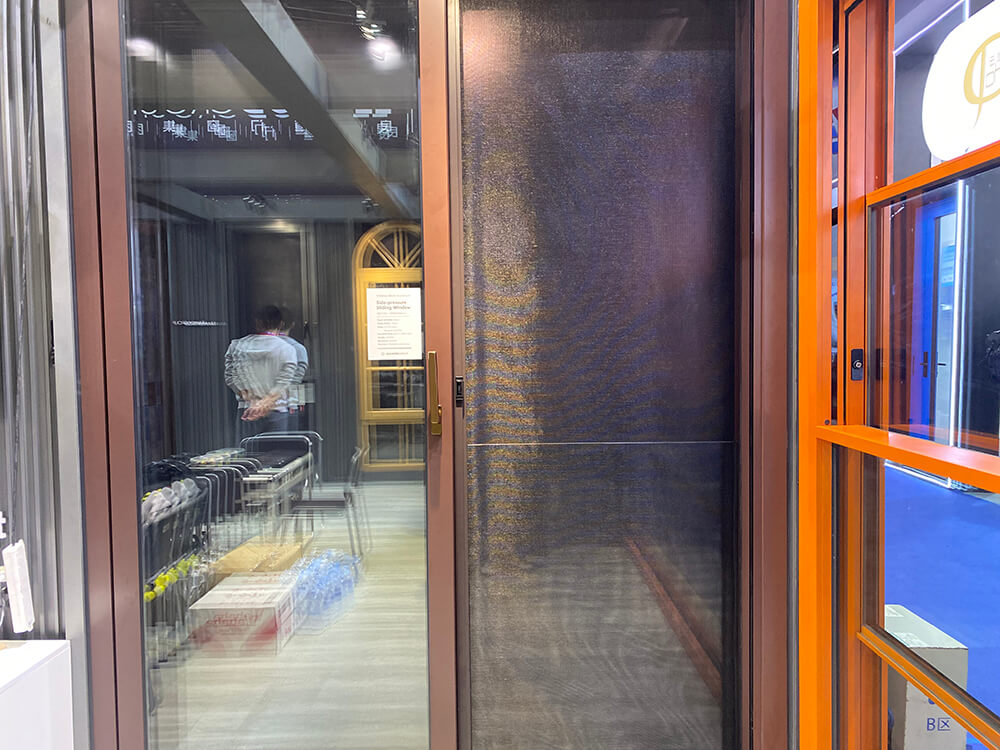

    GCY198 (3)

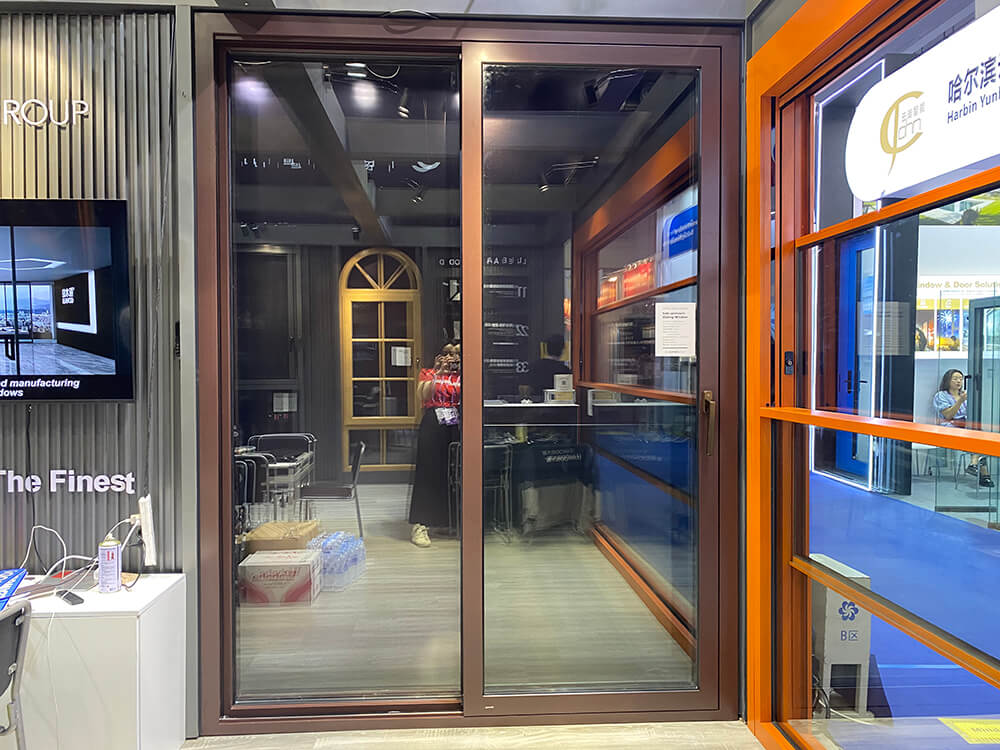

    GCY198 (1)

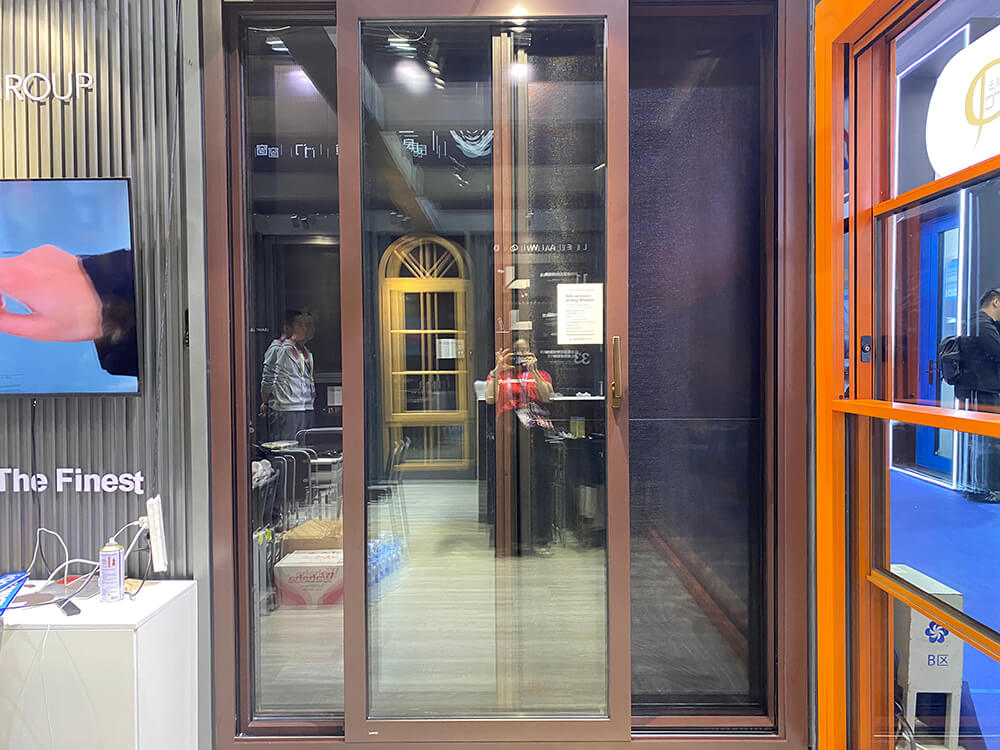

    GCY198 (2)
    Contact Us

    Aluminum Windows and Doors System

    Seven Core Crafts Design Make Our Products Difference

    3

    Import Hardware System

    Germany G-U & Austria MACO

    LEAWOD doors and windows: German-Austrian dual-core hardware system, defining the performance ceiling of doors and windows.

    With the industrial-grade bearing capacity of G-U as the backbone and the invisible intelligence of MACO as the soul, it reshapes the standard of high-end doors and windows.

    Energy saving and environmental protection

    2

    "Energy saving" has become a buzzword in recent years, and there is a reason for that. It is predicted that in the next 20 years, our homes will become the largest energy consumers, not industry or transportation. Doors and windows play an important role in the overall energy consumption of the home.

    At LEAWOD, every product we make is designed to maximize energy efficiency and meet or even exceed US standards. Whether it is sound insulation or air tightness and waterproofing, our doors and windows are carefully designed and have excellent performance. Choosing LEAWOD is not only to build a safety barrier for your home, but also to respond to the future of the earth with a window-international dual certification escort, so that quality and responsibility go hand in hand.

    adasd1

    Multiple options

    We have various windows and doors type for our clients.Also provide customization design service.

    adasd2

    Aluminum Colors

    Environmentally friendly water-based paint spraying gives our customers more color choices

    adasd3

    Custom Sizes

    Available in custom sizes  to fit into your existing opening, making installation quick and easy

    Client's Feedback

    sad

    The professionalism of LEAWOD windows and doors has made more users choose us

    What's the Difference with LEAWOD Windows

    asda
    asdasd6

    R7 Round Corner Technology

    No sharp corner on our window sash to protect our famil.The smooth window frame adopts high-end powder spraying technology, which not only looks more elegant but also has stronger welding.

    asdasd3

    Seamless welding

    The four corners of the aluminum edge adopt advanced seamless welding joint technology to make the joint grounded and welded smoothly. Enhance the strength of doors and windows.

    38

    Cavity Foam Filling

    Refrigerator- -grade,high insulation,energy-saving silent sponge Whole cavity fling to eliminate water seepage

    16

    SWISS GEMA Whole Spray Technology

    To ensure that there are no height differences of finished windows and doors, to solve the issues of water seepage.We have built several 1.4km Swiss golden overall painting lines

    39

    Non-return Differential Pressure Drainage

    Patent floor drain type differential pressure check drainage device. Keep out wind /rain/insect/noise prevent convection of indoor and outdoor air exchange.

    40

    No Bead Design

    Internal and external non bead design. It is welded as a whole to make an excellent and extremely.

    lv
    Contact Us

    LEAWOD Project Showcase

  • ltem Number
    GCY198
  • Opening Model
    Sliding Window
  • Profile Type
    6063-T5 Thermal Break Aluminum
  • Thickness
    ≥1.5mm
  • Screen
    Retractable Invisible Screen (High-Strength Fiberglass Mesh)
  • Surface Treatment
    Autria Tiger Powder Spraying
  • Glass
    Fixed: 6mm+27Ar+6mm, Glass Rabbet:50mm
    Sash: 6mm+27Ar+6mm, Glass Rabbet: 49mm
  • Guardrail Glass
    8mm+1.52PVB+8mm
  • Handle
    LEAWOD
  • Transmission
    LEAWOD
  • Warranty
    5 years
